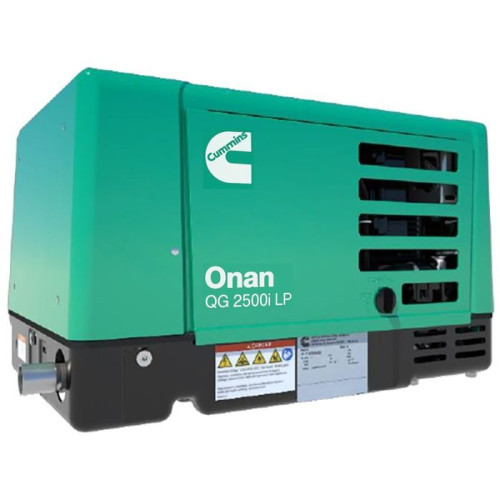

Cummins Onan QG 2500i 2500 Watt (2.5kW) 120 Volt Single-Phase Air-Cooled Propane RV Generator
2500 Watts | Inverter Generator | Low Oil Consumption | Quietest Generator Set in Class
The Cummins Onan 2500 Generator 2.5HGLAA-8310 meets CARB and EPA Tier 4 Final and Phase IV standards and specifications required for all motorized recreational vehicle generator sets. For sale in all 50 states. The inverter generator produces high quality power for power-sensitive RV loads. Engine speed varies with the load, reducing fuel use, noise, and vibration. This RV generator is 63% quieter, has 60 percent less vibration than earlier models, and weighs 9% less.
Ideal for truck campers, Class B Motorhomes, and trailer applications, the Cummins Onan RV QG 2500i Generator starts and runs a 13500 BTU air conditioner with a 600-watt baseload.
Powered by a 252cc engine rated at 3600 RPM, LP consumption is 0.31 GPH at half load and 0.55 GPH at full load.
CARB 2024 Compliant. For Sale and Use in All 50 States.
Cummins Onan RV Generator Set RV QG 2500i
The Cummins Onan 2500 Generator is an inverter generator with a digital voltage regulation, frequency regulation and a single-pole 25-Amp Circuit Breaker. It weighs just 113 pounds and has a compact design of 20 inches x 16.3 inches x 13.4-inches high.
Go RVing in our national parks without worry. The RV Generator Set meets National Park Service sound level requirements of 60 dB(A) or less at 50 feet. Expect less than 65dB at 10 feet away, quieter than the leading portable inverter generator. Typical installations lower the actual sound level. Vibration isolation ensures the 2500 Watt Generator runs exceptionally smooth and quiet within the full housing and integrated base. Noise is further reduced by the USDA Forest Service approved, fully enclosed, spark-arresting muffler.
The microprocessor controller regulates engine speed between 2445-2900 RPM to meet the power demand. Voltage regulation within ± 10% and frequency regulation within ± 5%-meets ANSI/RVIA requirements. Low Oil Shutdown protects against engine damage and fused DC circuits protect set wiring and remote control. Solid state ignition keeps the Cummins Onan RV Generator Set RV QG 2500 set operating efficiently and economically. Replaceable Fuel and Air Filters.
The RV QG 2500 Series Generator has more oil capacity, eliminating the need to check the oil between scheduled maintenance.
Package Includes the Cummins Onan 2500i Generator Manual.
Includes the Cummins 3-year/2000 hour limited warranty which covers all parts and labor excluding routine maintenance.
California Compliant
Features
- 2.5 kW LP Powered RV Generator - QG 2500i (HGLAA) CARB: New CARB Compliant 2024 Model. Enough power to run a 13,500 BTU AC (30A 1-Pole Breaker).
- Designed For Use With Multiple Applications: Fifth wheels, travel and sport utility trailers (requires remote gas tank, not included).
- Cummins Onan 4-Cycle OHV Engine (.31 Gal/H @ 1/2 Load): Provides quiet operation w/ excellent fuel efficiency. Includes electric solenoid (LP).
- Inverted Electrical Output: High power quality for sensitive RV loads.
- Microprocessor Controlled: Digital voltage regulator prevents damaging voltage spikes. Provides added protection from overloads and faults.
- Sound-Attenuating Enclosure: Lowers noise levels while providing cross-flow cooling.
- Control Panel w/ LED Status Indicator Light: Start-Stop/Prime rocker switch. Provides set diagnostics. J1939 communications capable.
- USDA Forest Service Approved Spark Arrestor Muffler: 66 dB(A) @ 10 ft. (3M) - Quietest generator sets of their size.
- Magnetic circuit breaker & fused DC circuits (to protect wiring).
- 100" generator set output leads (12 AWG).
- 3-year limited warranty.
Package Contents
- Cummins Onan RV QG 2500i LP Propane Generator
- User Manual
Specifications
| Item Number | A074X612 |
| Model Number | 2.8HGLAA-8310 |
| Model Name | RV QG 2500i |
| Fuel Type | LP Vapor |
| Voltage | 120 Single-Phase |
| Frequency | 60 Hertz |
| RPM | 2900-3200 |
| Alternator | Inverter |
| Auto Voltage Regulation | Yes |
| Rated Watts | 2500 Watts |
| LP Fuel Consumption @ 50% Load | 0.31 gallons/hr |
| LP Fuel Consumption @ 100% Load | .52 gallons/hr |
| Rated Amps | 20.8 Amps |
| Decibel Rating @ 10 ft. (3m) | 66 |
| Circuit Breaker Size | 30 Amps |
| Grade Type | Recreational |
| Engine Brand | Cummins Onan |
| Starting System | 12-Volt Button Start |
| CC | 224 CC |
| Low Oil Alert/Shutdown | Yes |
| Cast Iron Sleeve | Yes |
| Agency Compliance | CARB (California) |
| Dimensions (L x W x H) | 22 x 16.3 x 13.4 in. |
| Weight | 113 lbs. |
| Ship Weight | 175 lbs. |
| Consumer Engine Warranty | 3 Years |
